Discussion Starter #21

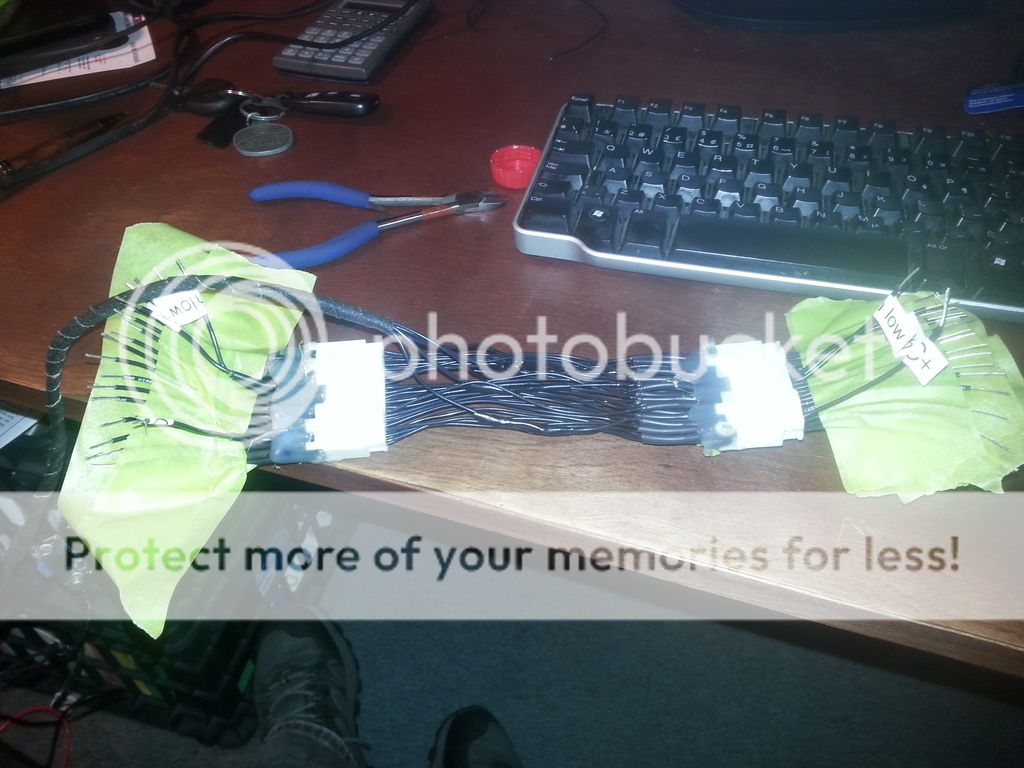

go crazy a do a testing harness lol

i had my first harness so i cut it in half and did some testing with it lol...not neccessary for only one



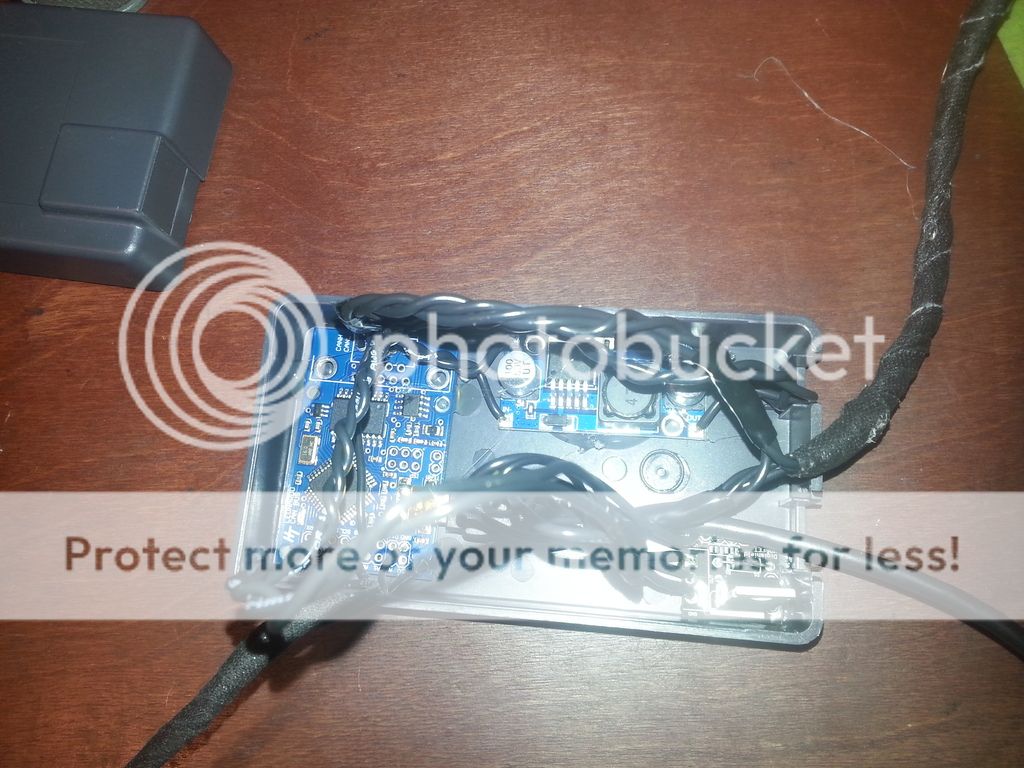

glue everything in the case..or use some tape and make sure no part will touch




now time to program the chip

download arduino software here

https://www.arduino.cc/en/Main/Software

install it

download library for the board download the zip file

https://github.com/reeedstudio/CAN_BUS_Shield

extract and insert into the arduino library folder

document/arduino/librairies and
document/arduino/arduino/librairies

you only need one but i gorgot wich one ...doh


in tools select
board:arduino leonardo
com: select the right one
and com


here is the program

/***************************************************************************
Sebastien Moreau at [email protected]

used

Hobbytronics Leonardo CAN-BUS board

Receive Test Data and set filters on ID
Send output data via serial port

Leonardo CAN BUS product page Leonardo CAN BUS board | L-CANBUS | HobbyTronics

Hobbytronics.co.uk

For mcp_can use this library https://github.com/reeedstudio/CAN_BUS_Shield
download the ZIP at the right of the screen
and insert what IN the zip folder into the library
rebbot arduino software
****************************************************************************/
#include <mcp_can.h>
#include <mcp_can_dfs.h>
#include <SPI.h>

unsigned int rxId;
unsigned char rxLen = 0;
unsigned char rxBuf[8];
volatile unsigned char canData = 0;
int AcReq = LOW;
int AcInputValue = LOW;
int Pulse=0;
int AcMem = LOW;
long CommCheck1 = 0; //check if communication is working if not do a reset
long CommCheck2 = 0;
MCP_CAN CAN0(17); // Set CS to pin 17



void setup() {
// put your setup code here, to run once:

delay (250); // wait a bit
Serial.begin(9600);
CAN0.begin(CAN_500KBPS); // init can bus : baudrate = 500k
attachInterrupt(4, can_receive, FALLING); // Pin D7 is Interrupt4 on Leonardo

pinMode(6, OUTPUT); // AC request status to send to haltech
pinMode(8, INPUT_PULLUP); // AC status input to read haltech AC confirmation
pinMode(9, OUTPUT); // Variable output for AC solenoid
analogWrite(9,0);// AC solenoid to 0V
pinMode(23, OUTPUT); // Led output activation mimic AC request


delay (250); //wait a bit
// *********************************************************
// Basic Filtering on ID
// *********************************************************
// Bytes 1 and 2 of mask/filter apply to ID
// So the Mask and filter below will only allow ID 0x350 through
// ---- ID -----
CAN0.init_Mask(0, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(0, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(1, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Mask(1, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(2, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(3, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(4, 0, 0x0350); // 0000 0011 0101 0000 - ACCEPT
CAN0.init_Filt(5, 0, 0x0001); // 0000 0000 0000 0001 - FAIL



}

void loop() {
// put your main code here, to run repeatedly:


//*****************Check if comm is operational if not do a reset***************************

++CommCheck1; //increase loop counter and check for comm fault if no comm then reset comm port

if (CommCheck1 == 200000) {
CommCheck1 = 0 ;

//if we didn't receive any message reset the port

if (CommCheck2 == 0) {
CAN0.begin(CAN_500KBPS); // reset comm port
attachInterrupt(4, can_receive, FALLING); // Pin D7 is Interrupt4 on Leonardo

// *********************************************************
// Basic Filtering on ID
// *********************************************************
// Bytes 1 and 2 of mask/filter apply to ID
// So the Mask and filter below will only allow ID 0x350 through
// ---- ID -----
CAN0.init_Mask(0, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(0, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(1, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Mask(1, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(2, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(3, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(4, 0, 0x0350); // 0000 0011 0101 0000 - ACCEPT
CAN0.init_Filt(5, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
Serial.println("Had to reset comm port, no communication!!");
}

//if we received to many message ...the filter didn't work...reset the port
else if (CommCheck2 > 1000) {

CAN0.begin(CAN_500KBPS); // reset comm port
attachInterrupt(4, can_receive, FALLING); // Pin D7 is Interrupt4 on Leonardo

// *********************************************************
// Basic Filtering on ID
// *********************************************************
// Bytes 1 and 2 of mask/filter apply to ID
// So the Mask and filter below will only allow ID 0x350 through
// ---- ID -----
CAN0.init_Mask(0, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(0, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(1, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Mask(1, 0, 0xFFFF); // 1111 1111 1111 1111
CAN0.init_Filt(2, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(3, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
CAN0.init_Filt(4, 0, 0x0350); // 0000 0011 0101 0000 - ACCEPT
CAN0.init_Filt(5, 0, 0x0001); // 0000 0000 0000 0001 - FAIL
Serial.print("Had to reset comm port, filter didn't work : ");Serial.println(CommCheck2);
CommCheck2 = 0 ;
}

//
else {
Serial.print("Comm port is OK received X amount of data: "); Serial.println(CommCheck2);
CommCheck2 = 0 ;
}
}
//*************************End of comm check*****************************************


//************************If data is received treat it********************************

if(canData)
{
canData=0;
++CommCheck2; // increase if data is receive
CAN0.readMsgBuf(&rxLen, rxBuf); // Read data: len = data length, buf = data byte(s)
rxId = CAN0.getCanId(); // Get message ID
/**
Serial.print("ID: ");
Serial.print(rxId, HEX);
Serial.print(" Data: ");
for(int i = 0; i < rxLen; i++) // Print each byte of the data
{
if(rxBuf < 0x10) // If data byte is less than 0x10, add a leading zero
{
Serial.print("0");
}
Serial.print(rxBuf, HEX);
Serial.print(" ");
}
Serial.println();
**/
//Evaluate AC request status ON or OFF

switch (rxBuf[1]) {
case 0x10:
AcReq = LOW;
break;
case 0x18:
AcReq = LOW;
break;
case 0x58:
AcReq = LOW;
break;
case 0x1B:
AcReq = HIGH;
break;
case 0x5B:
AcReq = HIGH;
break;
}

if (AcReq != AcMem) {
AcMem = AcReq;
Serial.print("AC demand from car 0 NO, 1 YES: ");Serial.println(AcReq);
}
digitalWrite(6, AcReq);
digitalWrite(23, AcReq);

} // end if

//************************END of received data treatment***********************

//************* Read Haltech output and put AC ON or OFF accordingly************************
//*** max pulse is at 200 that give around 10V that is what i have seen on stock system***

if (AcInputValue != digitalRead(8)) {
AcInputValue = digitalRead(8);
Serial.print("AC confirmation from haltech 0 GO, 1 take a brake: ");Serial.println(AcInputValue);

if (AcInputValue == HIGH) {
for (Pulse=200 ; Pulse >=0; Pulse--){
analogWrite(9,Pulse);
delay (3);
}

}
else {
for (Pulse=0 ; Pulse <=200; Pulse++){
analogWrite(9,Pulse);
delay (10);
}
}
}

//************End of input and AC driving**********************************************


}

void can_receive()
{
// CAN Receive Interrupt
canData = 1;
}


upload it to the device...click the arrow saying upload


do a quick check

and open the serial monitor window

tool / serial monitor

you will only see that there is no comm and port is reset

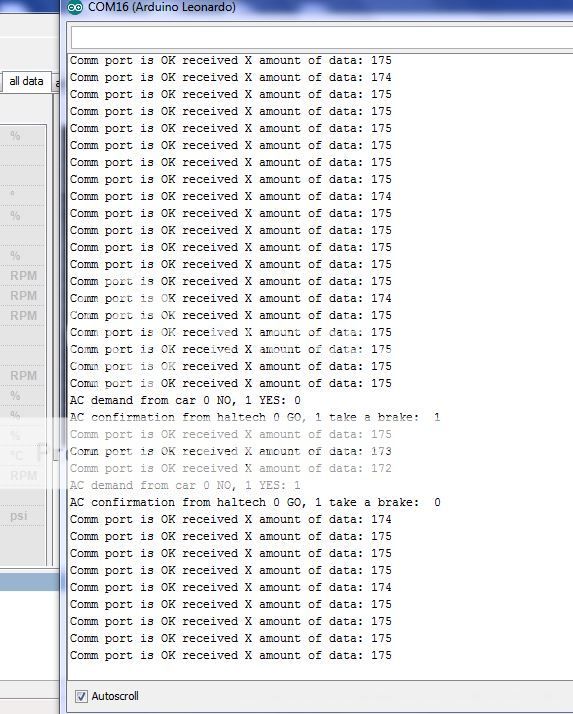

this is a normal exemple when connected to car

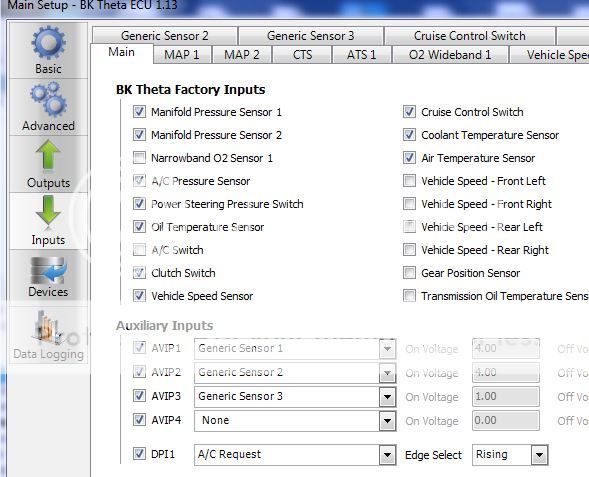

uncheck factory a/c input and program DPI1 as follow

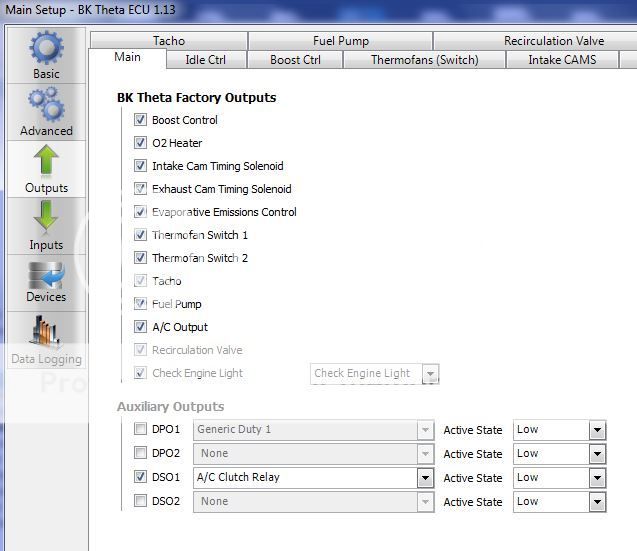

and programs DSO1 as follow



·
Registered
Joined
·
1,017 Posts
Discussion Starter #22
air con setting
i just used stock setting
some need pulsed output but i hated the idle so i remove it



·
Registered
Joined
·
26 Posts
Genius!!!


·
Registered
Joined
·
1,000 Posts



Way to go, would it make more sense to put the code into a file and have it hosted somewhere too so you don't have to copy an past off of the thread? Appreciate all of the hard work on this and then giving it to the community for free!


·
Registered
Joined
·
1,017 Posts
Discussion Starter #26
yeah tough of that too, just wasn't sure where to host it

and was thinking if it's in text...that will ensure that the program is not lost because of a broken link or something


·
Registered
Joined
·
1,017 Posts
Discussion Starter #30
mouser or element 14 i forgot

you also need the pin for it


i may still have the part number somewhere if you need it


·
Registered
Joined
·
480 Posts
Awesome work so far man. I've been dying without A/C...


·
Registered
Joined
·
1,017 Posts
Discussion Starter #33
If i could find the AC compressor connector it would be way more easy

it would prevent from building the 40 pin extension


·
Registered
Joined
·
1,017 Posts
Discussion Starter #35
yep i verified, these are the right part to hook in the car side of the triple gage

what kind of project if i can ask ??


·
Registered
Joined
·
21 Posts
yep i verified, these are the right part to hook in the car side of the triple gage

what kind of project if i can ask ??
I'm doing a blue screen delete. I am using an aurdino to send the ac information to a tablet that I'm putting in place of the blue screen.

Do you know the connector the blue screen uses? I have been trying to find out but I haven't been having any luck


·
Registered
Joined
·
1,017 Posts
Discussion Starter #38
why do you need the connector if you remove the gage ...

...

i just checked ... gage and blue screen are not on the same can bus ....probably why

it's a KET connector KET_090III_10F_W if i look into the gds

KET and AMP number seem to be equal 090 III for type and 10f for pin and gender

936092-1 TE Connectivity | Mouser

check the spec the initial image on the page is not good

936129-1 TE Connectivity | Mouser


·
Registered
Joined
·
21 Posts
why do you need the connector if you remove the gage ...

...

i just checked ... gage and blue screen are not on the same can bus ....probably why

it's a KET connector KET_090III_10F_W if i look into the gds

KET and AMP number seem to be equal 090 III for type and 10f for pin and gender

936092-1 TE Connectivity | Mouser

check the spec the initial image on the page is not good

936129-1 TE Connectivity | Mouser

I don't use the stock gauges and need the CAN L and CAN H hookup.

I have one of these:
https://canb.us/

I am taking some of the data from the low speed can bus and all of the data on the high speed can bus and sending it as an output on the third channel which I have one of those OBD2 Bluetooth devices listening on. The tablet communicates with the OBD2 Bluetooth device showing current AC Settings. I needed the other connector because it has the low speed can bus on it. Now that you have provided this information I can make it plug and play without cutting any wires :)

I'm not an expert at this but so far everything seems to work.


·
Registered
Joined
·
1,017 Posts
Discussion Starter #40
Each time i check they are always out of stock lol

i was thinking of using this at first with the haltech...

cut the can to bus to AC and put the device in the middle...and just change the adress that need to be change to start ac....

maybe one day...
