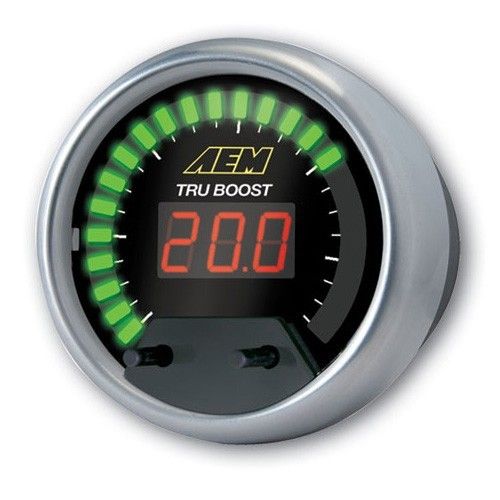

AEM 30-4350 TRU-BOOST Gauge Type Boost Controller​


NOT VEHICLE SPECIFIC!

COMPATIBLE WITH A WIDE RANGE OF APPLICATIONS!​



*no external interface required for setup*
*fully functional right out of the box*
*no gimmicks*
*no special software programs included*​

Overview:

- No external interface required for programming!
- Complete system includes harness, boost hose, on-board 29 psig pressure sensor (external 75 psia optional), boost - solenoid, gauge display and all necessary fittings
- Quick connect technology eases the installation process
- Two user selectable boost settings with peak boost memory
- Scramble boost setting allows user to momentarily change boost levels
- User selectable Overboost alarm includes two timed shutdown levels at 10% and 20% Overboost
- User configurable gauge includes 24 scalable LEDs, and interchangeable bezel, pin guide and faceplate to customize look of display
- One (1) low-side output included for warning lights








Includes all you need:

- On-board 29 psig pressure sensor
- Built-in Overboost protection with two timed shutdown levels
- A scramble boost setting and a low-side output for a warning light

NOTE: AEM's boost control solenoid (included) is the only one specifically manufactured for automotive boost applications, which means it won't corrode and stick from exposure to rich fuel mixtures, it is pressure tested to 100 psi and includes -4 AN fittings to eliminate any chance of leaks.



Part# 30-4350

Price TOO LOW to list, please message us for pricing!

MAKE SURE TO VISIT GENESISTUNERS.COM FOR MORE GENESIS COUPE PARTS!
