Here is a custom shift knob I made to replace my factory one. Enjoy!

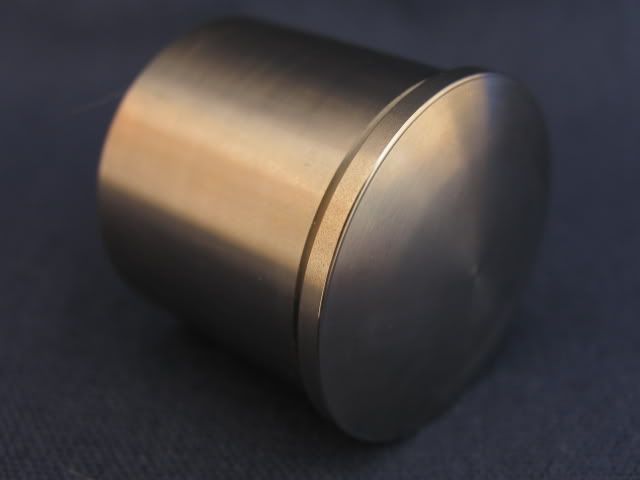

Here is the top. Material is Titanium 6AL-4v (Grade 5 I believe)
![Image]()

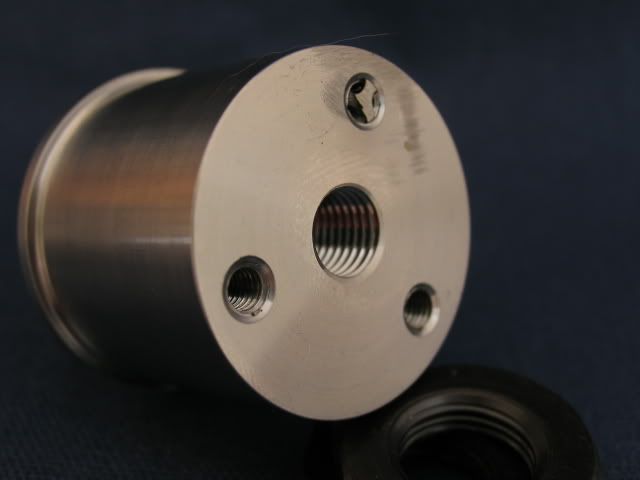

Tapped holes in top. Center hole is an M12 x 1.25 metric for the shifter shank. The other three (err two) are #10-32
![Image]()

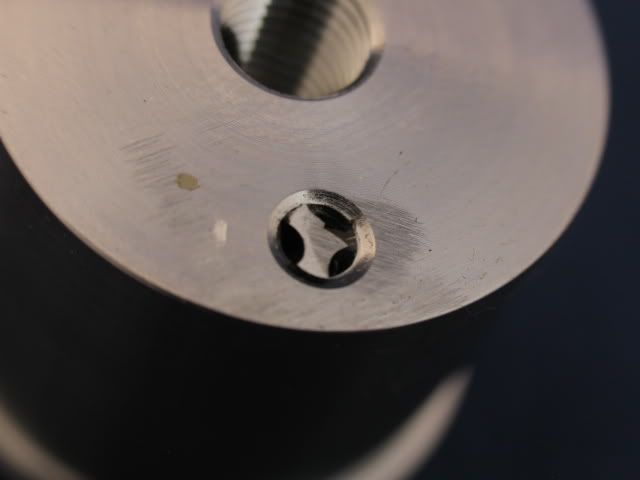

I broke a tap off in one of the holes. Titanium is an unforgiving material!
![Image]()

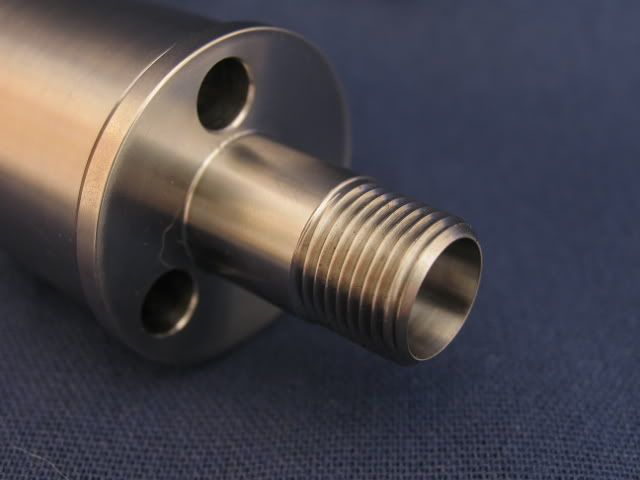

Here is the bottom portion. The threads pictured are #5/8 - 18 . These are for the jam nuts to hold the shift boot up.
![Image]()

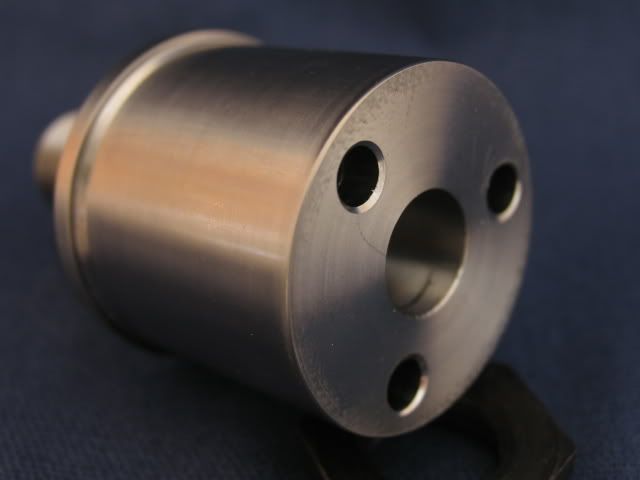

Counter-bores for the #10-32 screws to join the top and bottom portions. Counter-bores are 1.25" deep.
![Image]()

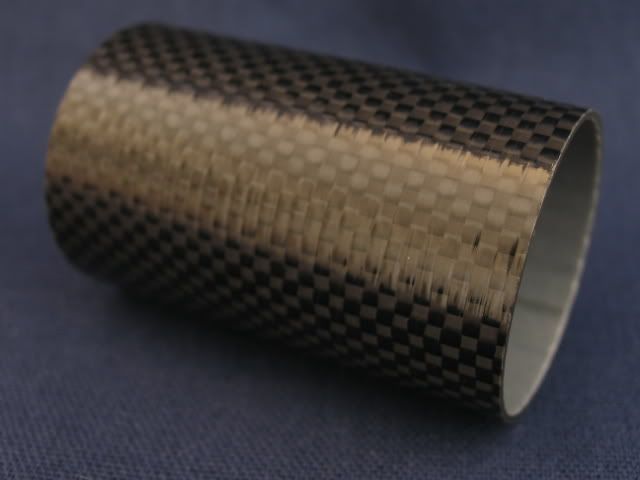

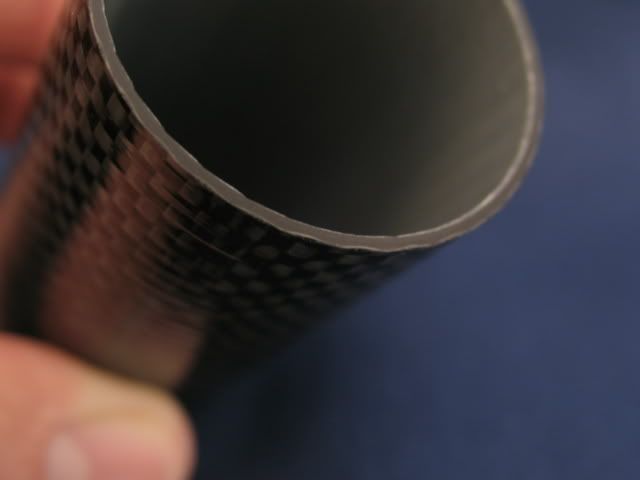

Here is the Carbon Fiber sleeve. 1.6 inch diameter.
![Image]()
Wall thickness is .05"
![Image]()

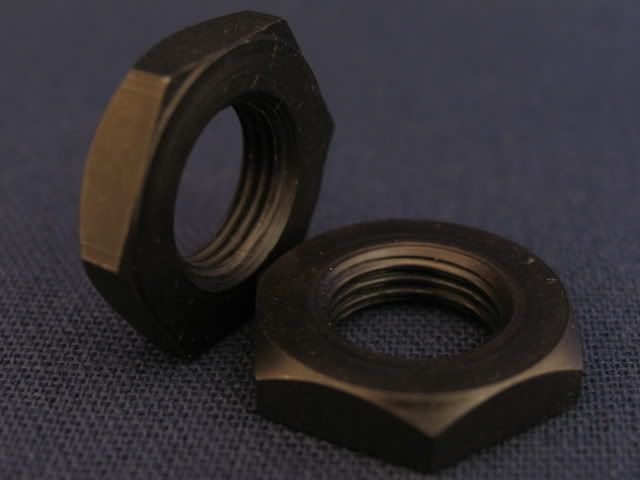

Jam nuts (sometimes referred to as thin nuts)
![Image]()

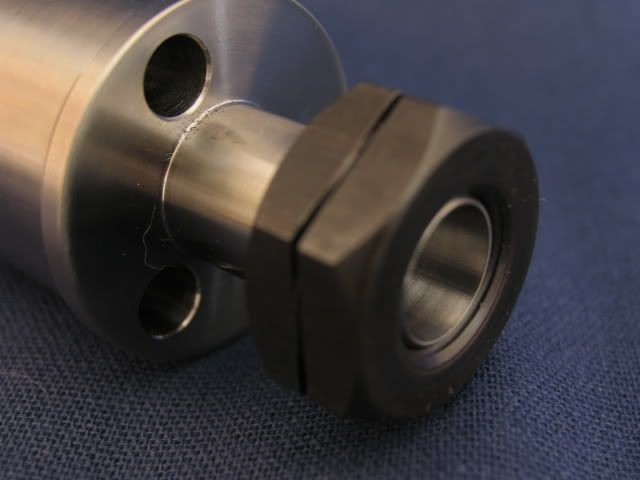

Test fit for jam nuts
![Image]()

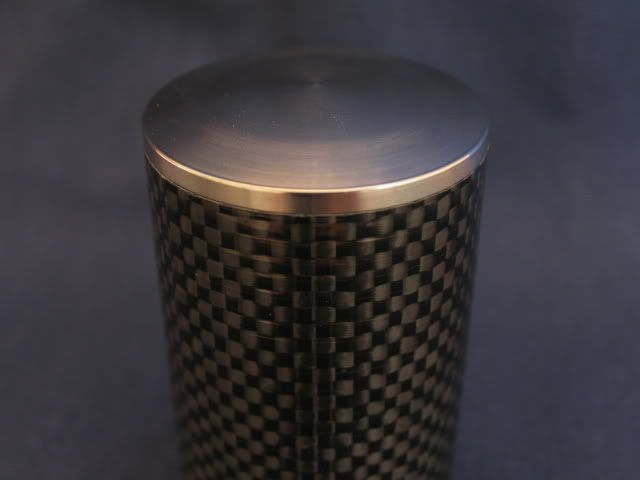

Top portion installed into carbon fiber sleeve
![Image]()
Next the bottom portion
![Image]()

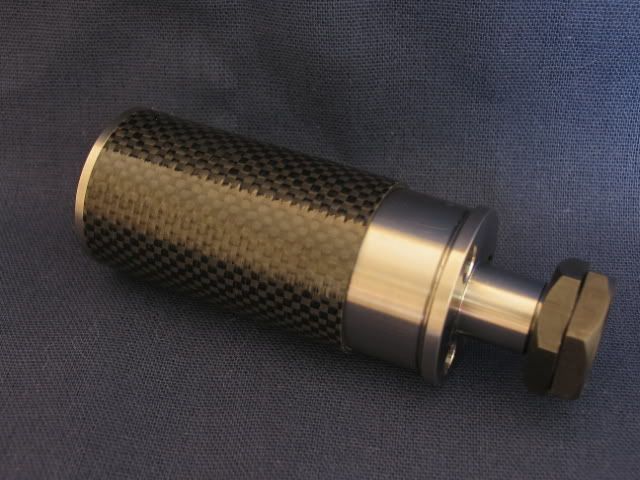

Screwed together
![Image]()

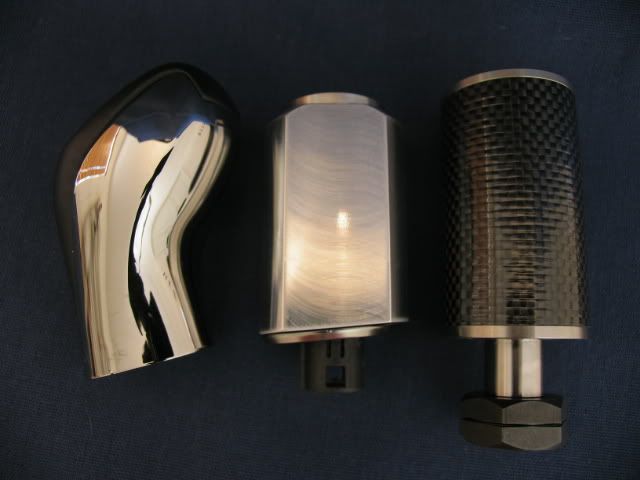

Here is a shot of the shifters (OEM, first attempt, CF)
![Image]()

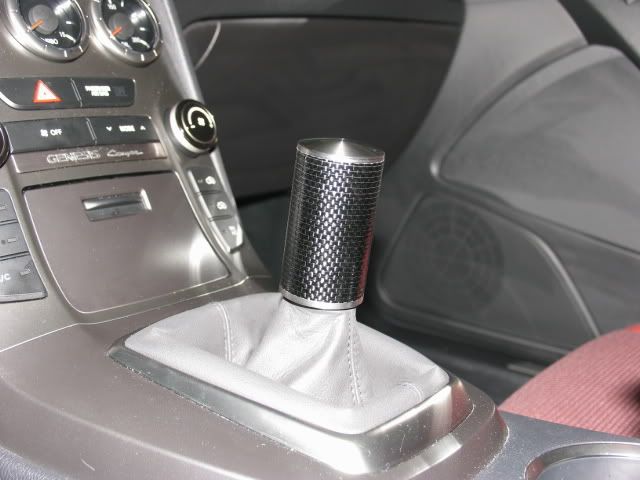

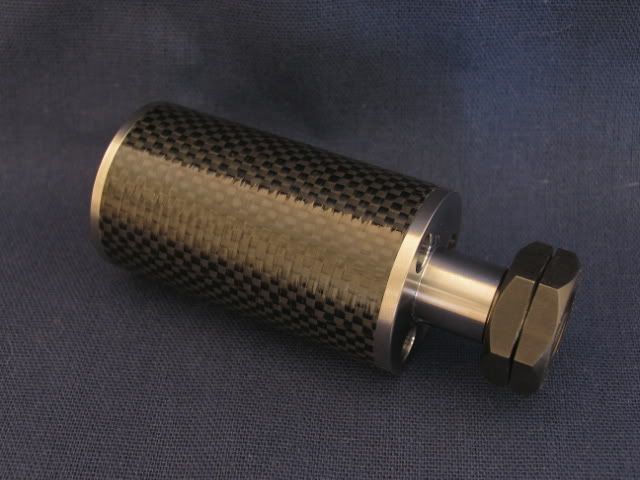

Carbon Fiber installed
![Image]()
Enjoy!
