In addition to my GarageLine Springs write up, I'm going to give everyone a write up for the R-spec rear sway bar (28mm). Its full of awesome IMHO.

It can be found here: 2009-13 HYUNDAI GENESIS COUPE REAR SWAY BAR 28MM - Welcome to GarageLine

I will also add to not switch endlinks on concrete or gravel, etc. Or you will end up with a scratched up bar like me :(

Also some of these instructions will be from reference from the sheet that was provided by GarageLine. I will mark these with an asterisk(*).

Some of you may notice that a lot of this is the same as my other write up. Well, that is because I copied and pasted. Its my work, so I'll do with it what I want :p

Lets get this done.

We're obviously going to start off with jacking up with car and placing your car on jack stands (or whatever your lifting preference is).
Remove your wheels and place them off to the side.
If you're replacing the rear sway bar, this is the best time to do so :)

Continue by either completely taking off the sway bar (which I did since I was changing it out) or disconnect the sway bar links for the control arm.

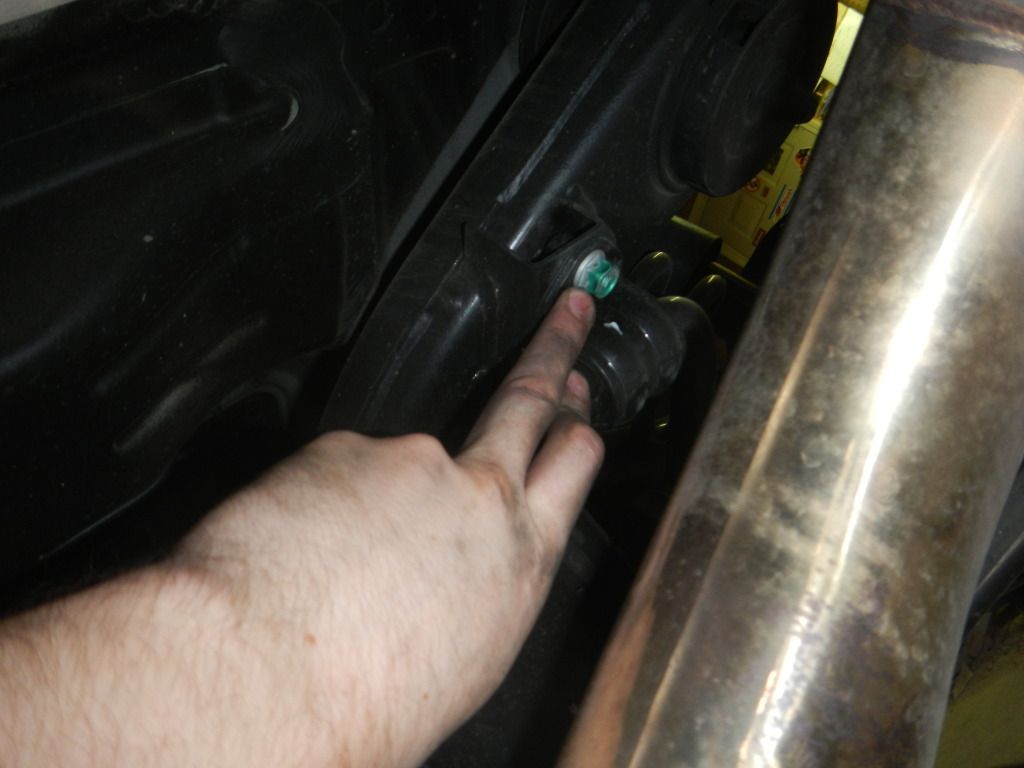

You can disconnect the links with a 17mm wrench and a 17mm socket.
Driver side:

Passenger side:


Or if you're completely removing the sway bar, you can remove the links for the control arm, just like above, and then remove the 2 mounting brackets with a 14mm socket (2 bolts for each bracket).
Driver side:



Passenger side:




Now that we have the sway bar either disconnected or off, we can now begin to switch off the links from the old sway bar, to the new bar.
(I'm sorry that I don't have pictures of the linkage removal and placement.)

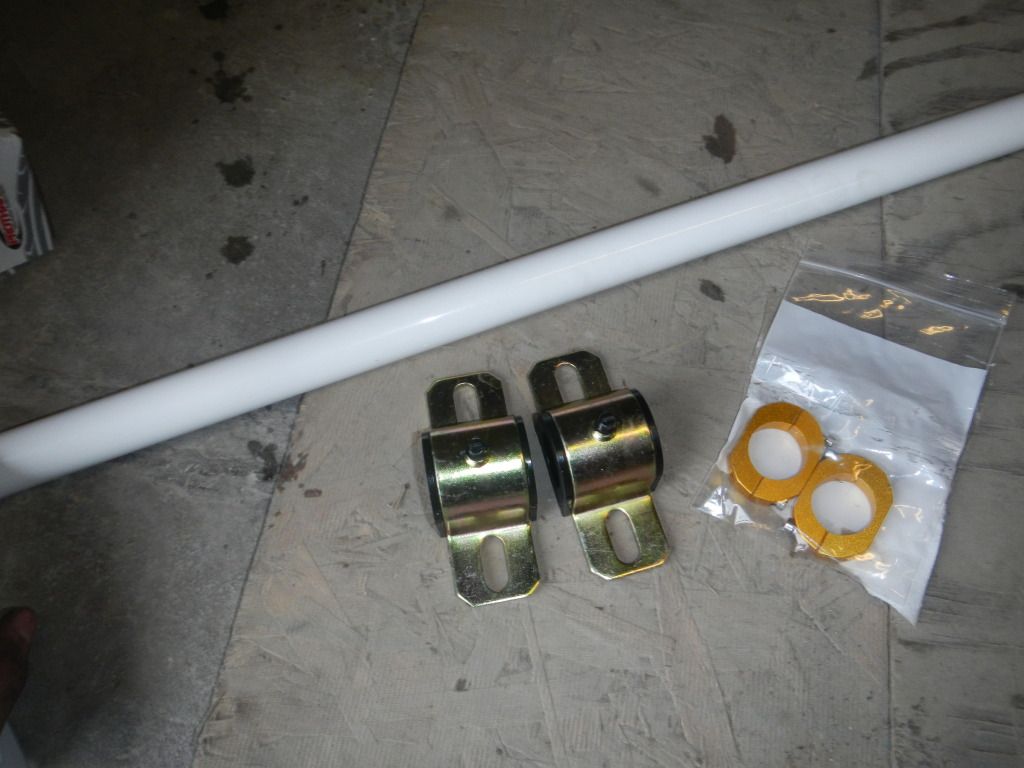

Notice that there are two holes in the GarageLine sway bar, and that is because it is adjustable. The inner holes are for a stiffer adjustment, whereas the outer holes are for a less stiff adjustment.
(I personally chose the stiffer adjustment.)

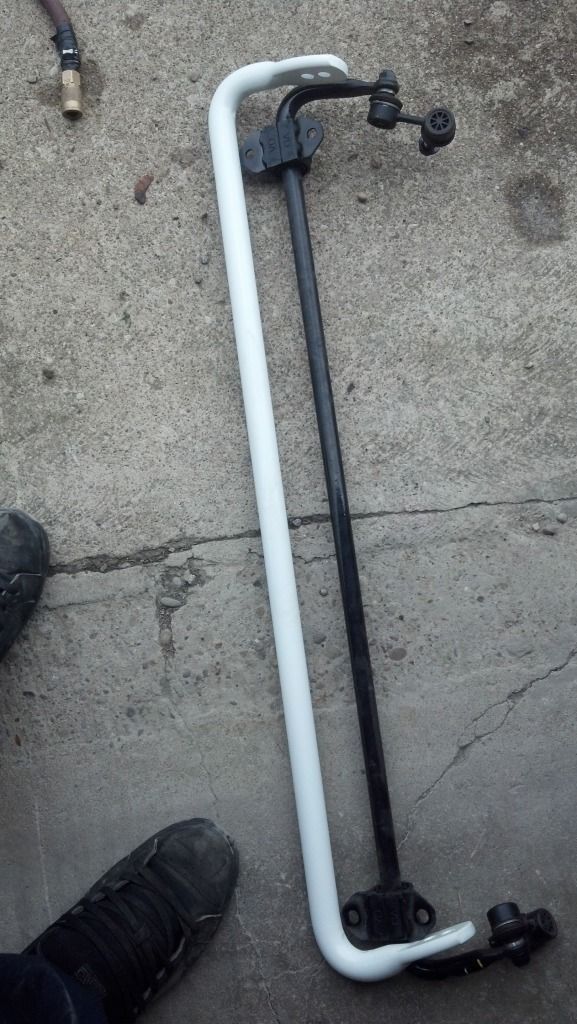

Remove the endlinks off of the the factory bar and place them on the GarageLine the exact same way.


I will also add to not switch endlinks on concrete or gravel, etc. Or you will end up with a scratched up bar like me :(

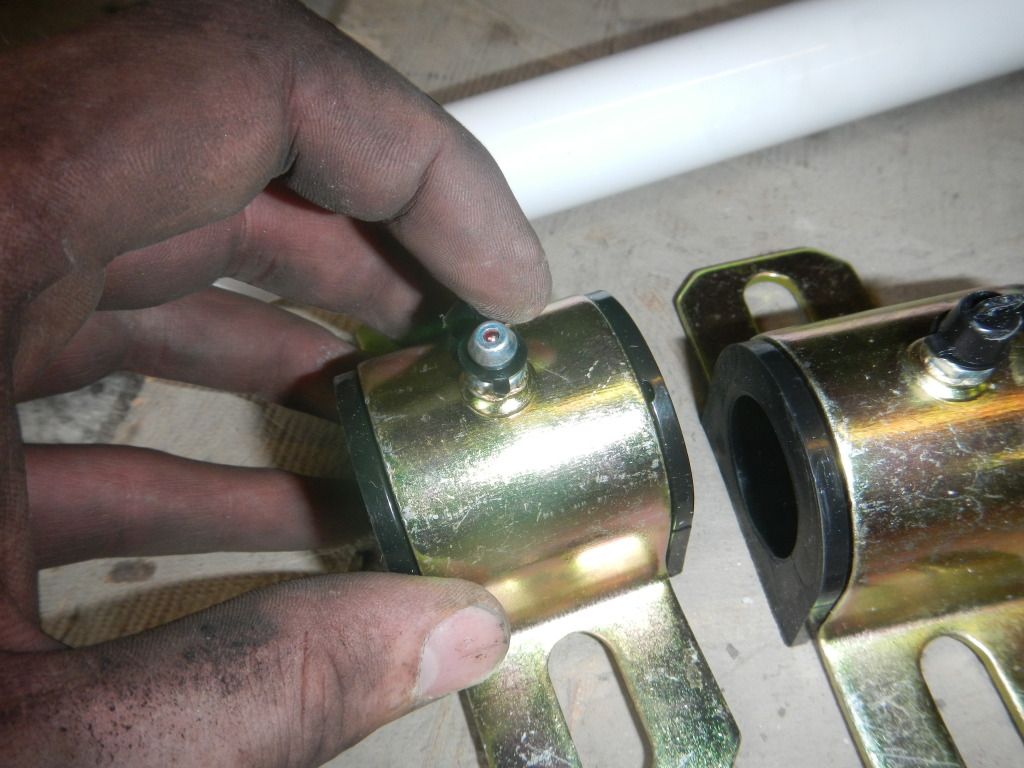

Put some light grease in the inside of the aftermarket bushings before installing them on the aftermarket bar.
Now that the endlinks and the bushings are on the bar, put the bar back into position in the car.
Place the endlinks into position, and LIGHTLY tighten them.
Like so:

Push the bar up into place, and again, LIGHTLY tighten the bar mounts, making sure all 4 bolts are in place and not cross threaded.
Now, slide the bar either left or right, centering it on the vehicle.
Tighten the mounting bolts to 20-30ft.lbs.**
Tighten the endlinks to 20-30ft.lbs.**

Make sure the bar is still centered to the vehicle.

Now slide the bar collars into place, which should be as close to the inside of the swaybar bushings, to keep the swaybar from sliding around. Once in place, hand tighten.**

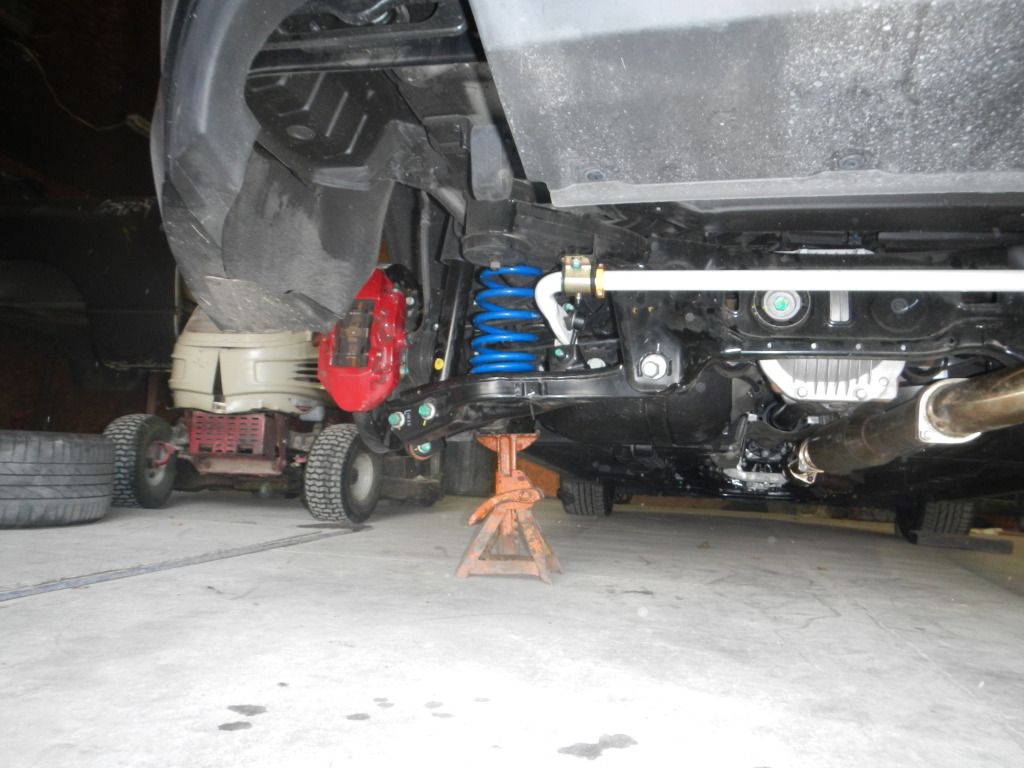

It should now look like this.





Put your wheels on and lower your car. You are now finished!
Go out and enjoy the awesomeness!!

Here are the finishing steps provided by GarageLine.
-I found them a bit confusing, that's why I made my own.


5) Place the new sway bar into place endlink mounts to the front of the car and the bushing mounts facing up. Once You have on mount on the car, loosely tighten the bolts. Slide the other bushing mount off and grease the sway bar in between the bushing and the bar itself. This is to keep the bar from making any noise. Now reinstall the bushing mount and tighten the 14mm bolt to 20-30 ft. lbs. Make sure the bar is centered. Grease the other bushing and tighten like the first one.
6) Now tighten the endlinks to 20-30 ft. lbs.
7) Last step is to slide the shaft collars into place. They should be close to the inside of the swaybar bushing, keeping the swaybar from sliding out of position. Once in the correct place, hand tighten.
8) Done... Lower and enjoy!


·
